with Windows XP on my new Windows Vista
Note that you should not attempt this if you aren't ready to troubleshoot any problems that might occur.
The first issue we encounter is that computers with pre-installed
operating systems take up the entire drive. Luckily Microsoft included
the Shrink Volume feature in Vista, so we can easily shrink the Vista partition down to make room for XP.
Open the Computer Management panel, which you can find under
Administrative tools or by right-clicking the Computer item in the
start menu and choosing Manage. Find the Disk Management item in the
list and select that.

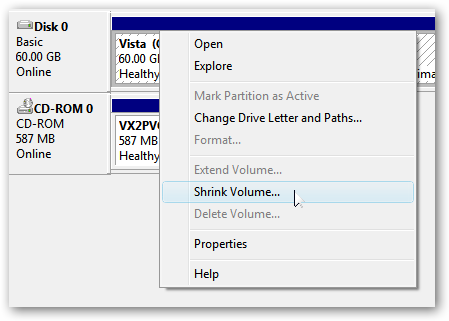

Now we'll shrink our volume down by right-clicking on the main hard drive and choosing Shrink Volume.
Now you can choose the size that you want to shrink, which really
means you are choosing the size that you want your XP partition to be.
Whatever you do, don't just use the default. I chose roughly 10gb by
entering 10000 into the amount.
The next step might be confusing, because we need to change the
cd-rom drive that's invariably taking up D: at the moment, because we
want to use D: for the Windows XP partition, but it's already taken by
the cd-rom drive. If you skip this step than XP will install onto the
E: drive, which isn't the end of the world, but it's not quite as tidy.
Right-click on the cd-rom drive in the list and choose Change Drive Letter and Paths from the menu.
Now we'll change the CD drive to use E: by selecting that in the drop-down.
Now we can create a new partition for XP to live on and make sure
that the drive letter is set the way we want. If you do not create a
partition now the XP install will do so automatically, but it's easier
and cleaner to do it this way.
Right-click on the Unallocated free space area and then select New Simple Volume from the menu.
Follow through the wizard and select whatever options you'd like, making sure to use D: as the drive letter.
Now you will need to close out of disk management and reboot your
computer. This is because we can't do the next step until we reboot.
(you can try, but it won't work)
So we've come back from rebooting… open up Computer from the start
menu and then right-click on the D: drive and select properties. Give
your partition a meaningful name like "XP". It would be wise to name
the C: drive to "Vista" at this point as well.
Now you'll want to pop your XP cd into the drive and boot off it.
You may have to configure your BIOS to enable booting off the CD drive,
or if your computer says something like "Hit Esc for boot menu" you
might want to use that.
Once you come to the screen where you can choose the partition to
install on, then choose either the unpartitioned space or the new
partition you created. Whatever you do, don't try and install onto your
Vista partition! See how much cleaner it is now that we've labeled each
partition distinctly?
We'll assume XP is completely installed at this point, and you will
have lost your ability to boot into Windows Vista, so we'll need to use
the VistaBootPro utility to restore the Vista boot loader.
Download and install VistaBootPro from vistabootpro.org
During the install you'll be forced to install the .NET 2.0
framework. Open up VistaBootPRO and then click on the System Bootloader
tab. Check the "Windows Vista Bootloader" and then "All Drives" radio
buttons, and then click on the Install Bootloader button.
At this point, the Windows Vista bootloader is installed and you'll
only be able to boot into Vista, but we'll fix that. Instead of
manually doing the work, we'll just click the Diagnostics menu item and
then choose Run Diagnostics from the menu.
This will scan your computer and then automatically fill in the XP
version.. click on the "Manage OS Entries" tab and then click in the
textbox for Rename OS Entry, and name it something useful like "Windows
XP" or "The Windows That Works"
Click the Apply Updates button and then reboot your computer… you
should see your shiny new boot manager with both operating systems in
the list!
If you get an error saying "unable to find ntldr" when trying to boot XP, you'll need to do the following:
- Find the hidden files ntldr and ntdetect.com in the root of your Vista drive and copy them to the root of your XP drive.
- If you can't find the files there, you can find them in the \i386\ folder on your XP install cd
This is a critical piece of information: Windows XP will be
installed on the D: drive, even in Windows XP… so you'll need to keep
that in mind when tweaking your system.
You can share information between the drives, but I wouldn't
recommend messing with the other operating system's partition too much…
Or screw up your files. What I dorecommend is that you store most of your files on a third drive sharedbetween the operating systems… you could call that partition "Data".
